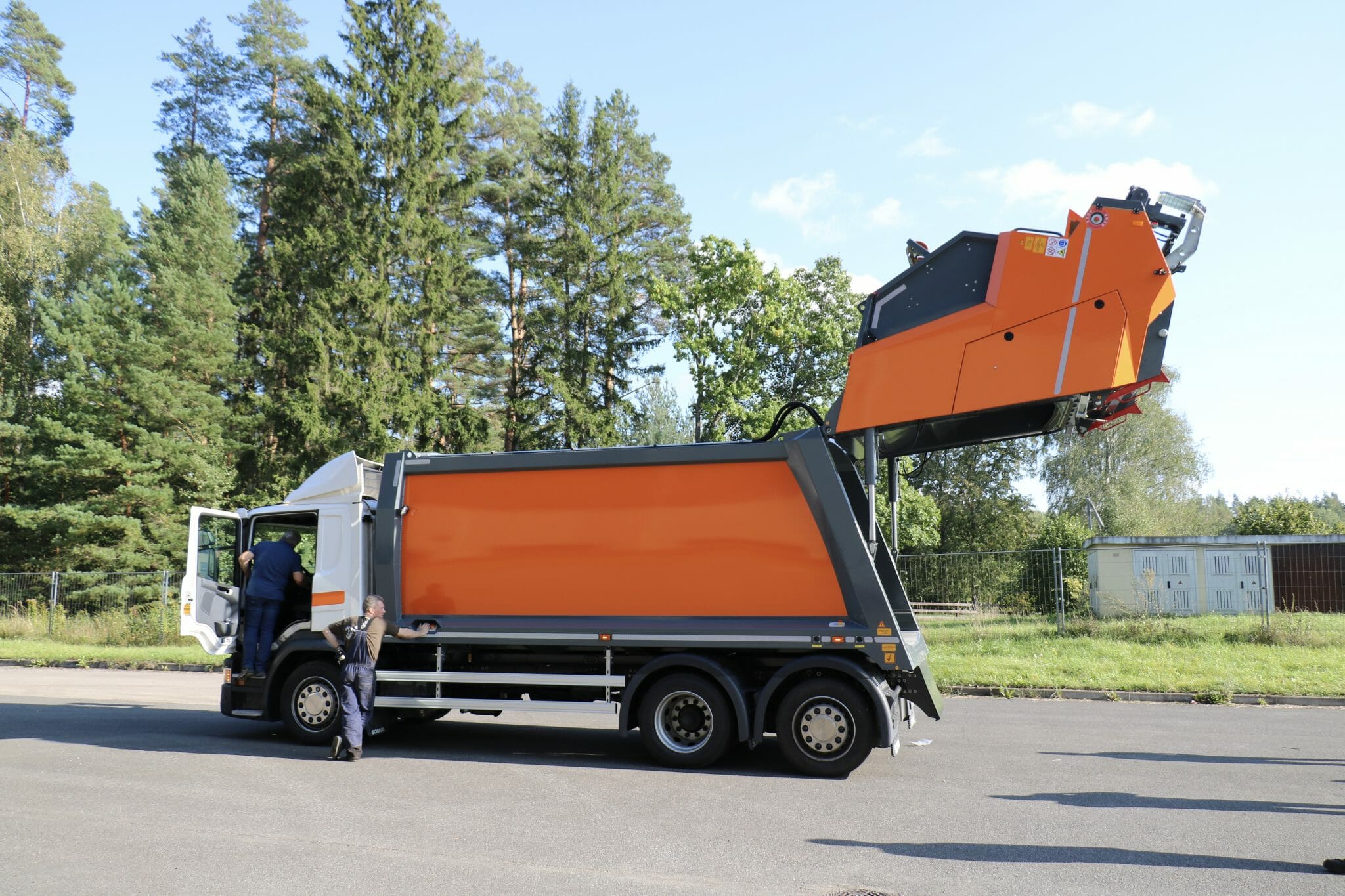

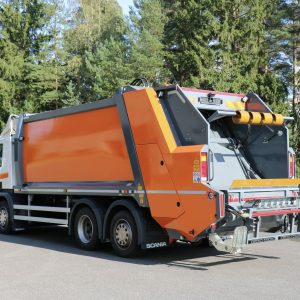

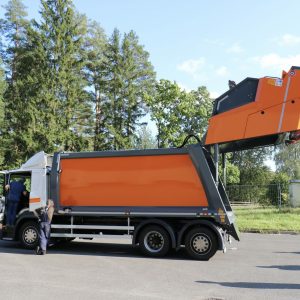

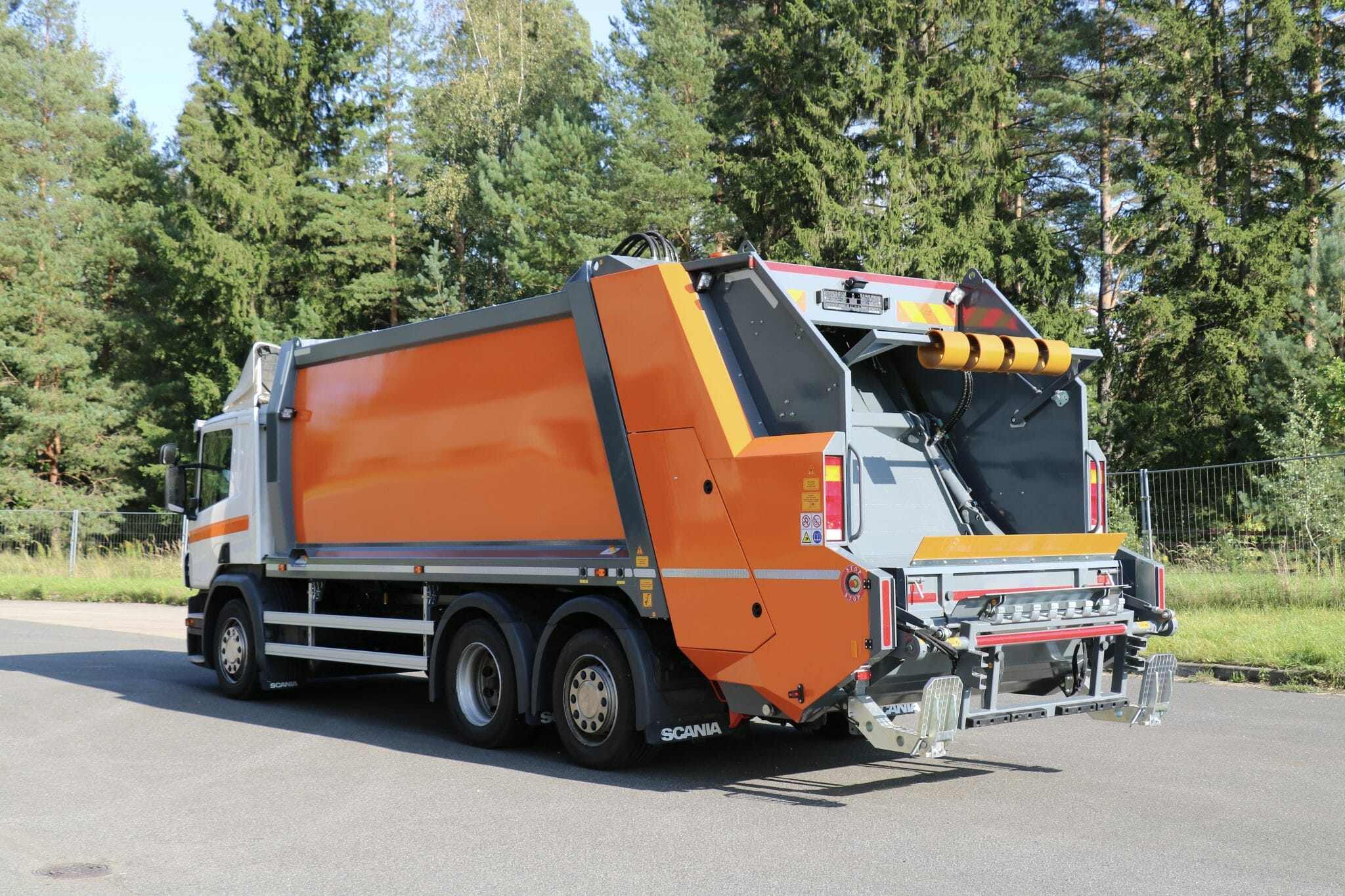

Refuse collection vehicles / Waste disposal vehicle – REAR LOADER RL-20

Rear loaded RL-20 is highly efficient refuse collection vehicle, as well as elegant and reliable unit, that can be used for all recyclable and waste  material.

RL-20 can be adopted to different type of chassis Mercedes-Benz, IVECO, MAZ, КAMAZ, SCANIA, MAN and their analogues.

RL-20 is designed for  manual collection of large-size waste, solid waste and transporting them to the places of disposal.

Compaction of waste is carried out by using pressing and ejector plates.

Body: the frame body is made of shaped tubes; the inside of the roll cage built into the body of the spherical shape of steel resistant to deformations; sides, roof and bottom are of spherical shape, whose profile ensures even load distribution in the working cycle and the simplicity of the gathering of the liquid contained in the waste; the side walls and roof made of solid steel sheet Strenx; the bottom is made of wear resistant HARDOX 450.

Hopper: design the hopper is reinforced by ribs made of alloy steel; work surfaces of the plates HARDOX 450, the wear edge of the rotary blade and the receiving hopper made of wear-resistant steel HARDOX 450 / 8 mm; regulated loading height of the hopper; a sealing mechanism articulated, connecting rod, to prevent jamming of debris when the seal in the loading hopper; hydraulic cylinders drive the sealing plate placed inside the rear side; due to the shape of the hopper is no spillage beyond.

Ejector plate: plate movement is carried out along the guide rails by means of a telescopic double-acting hydraulic cylinder; uniform speed; easy disassembly and maintenance; optimal use of space inside the body; high capacity.
